Show Process Limits Using /proc Filesystem

Show process limits with /proc filesystem

I think I mentioned the special /proc filesystem before, it’s available in Linux distros and helps you obtain system and process information via normal files created in a special structure. Today I’d like to show you another cool trick /proc has.

Show Process Info Using /proc

Just to remind you, here’s what I mean: on my Red Hat PC I have this sshd daemon process running:

root@redhat:/ # ps -aef | grep [o]penssh
root 5130 1 0 Oct03 ? 00:00:00 /usr/sbin/sshd -D [email protected],[email protected],aes256-ctr,aes256-cbc,[email protected],aes128-ctr,aes128-cbc [email protected],[email protected],[email protected],[email protected],hmac-sha2-256,hmac-sha1,[email protected],hmac-sha2-512 -oGSSAPIKexAlgorithms=gss-gex-sha1-,gss-group14-sha1- [email protected],ecdh-sha2-nistp256,ecdh-sha2-nistp384,ecdh-sha2-nistp521,diffie-hellman-group-exchange-sha256,diffie-hellman-group14-sha256,diffie-hellman-group16-sha512,diffie-hellman-group18-sha512,diffie-hellman-group-exchange-sha1,diffie-hellman-group14-sha1 -oHostKeyAlgorithms=rsa-sha2-256,ecdsa-sha2-nistp256,[email protected],ecdsa-sha2-nistp384,[email protected],rsa-sha2-512,ecdsa-sha2-nistp521,[email protected],ssh-ed25519,[email protected],ssh-rsa,[email protected] -oPubkeyAcceptedKeyTypes=rsa-sha2-256,ecdsa-sha2-nistp256,[email protected],ecdsa-sha2-nistp384,[email protected],rsa-sha2-512,ecdsa-sha2-nistp521,[email protected],ssh-ed25519,[email protected],ssh-rsa,[email protected]

So the sshd process ID (PID) is 5130. That means I can use /proc filesystem to learn quite a bit about the process:

root@redhat:/ # cd /proc/5130
root@redhat:/proc/5130 # ls
 attr        cmdline          environ  io         mem         ns             pagemap      sched      smaps_rollup  syscall        wchan
 autogroup   comm             exe      limits     mountinfo   numa_maps      patch_state  schedstat  stack         task
 auxv        coredump_filter  fd       loginuid   mounts      oom_adj        personality  sessionid  stat          timers
 cgroup      cpuset           fdinfo   map_files  mountstats  oom_score      projid_map   setgroups  statm         timerslack_ns
 clear_refs  cwd              gid_map  maps       net         oom_score_adj  root         smaps      status        uid_map

Each file or directory in this /proc/5130 location shows some information specific to this PID 5130.

For instance, if we list files in the fd directory there, we’ll see all the files and sockets open by sshd at the moment:

root@redhat:/proc/5130 # ls -al fd/*
lr-x------. 1 root root 64 Oct  3 14:10 fd/0 -> /dev/null
lrwx------. 1 root root 64 Oct  3 14:10 fd/1 -> 'socket:[39555]'
lrwx------. 1 root root 64 Oct  3 14:10 fd/2 -> 'socket:[39555]'
lr-x------. 1 root root 64 Oct  3 14:10 fd/3 -> /dev/urandom
lr-x------. 1 root root 64 Oct  3 14:10 fd/4 -> /var/lib/sss/mc/passwd
lrwx------. 1 root root 64 Oct  3 14:10 fd/5 -> 'socket:[45446]'
lrwx

TODO: I’ll be sure to write a separate post on the /proc filesystem with more thorough walkthrough.

Show Process Limits Using /proc

One of the files in /proc subdirectories is file called limits, and it’s super useful for confirming the current OS limits applied to the process in question.

So for the sshd process with PID 5130, here’s what we can see:

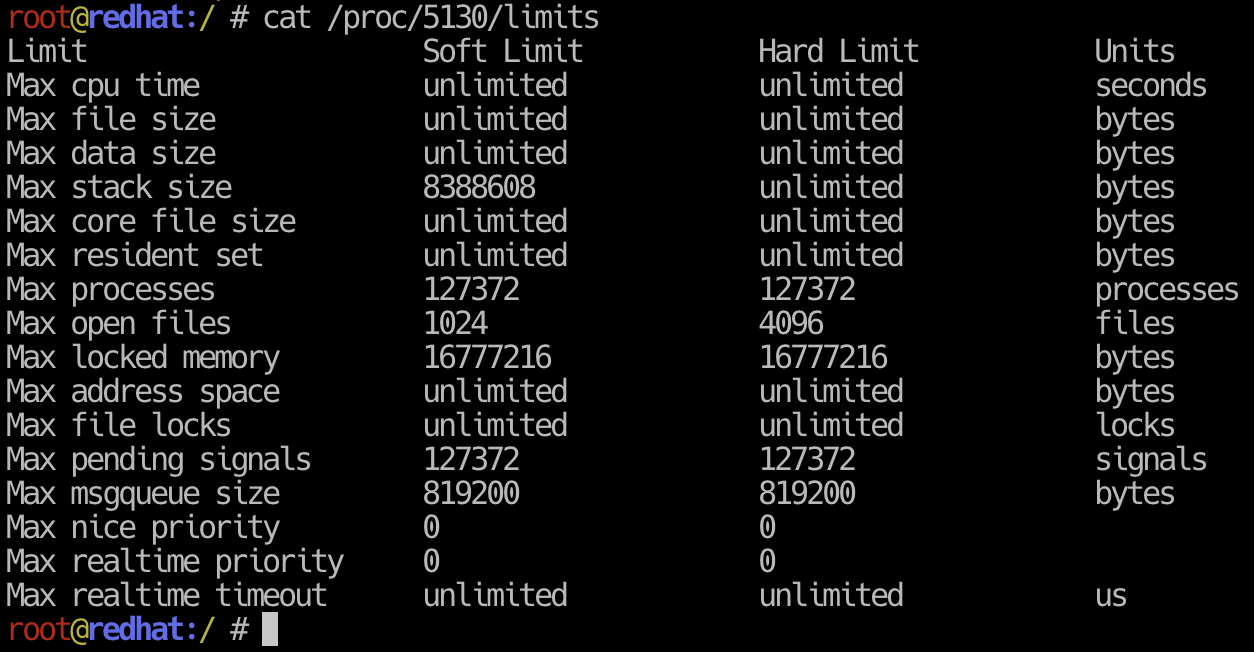

root@redhat:/proc/5130 # cat limits
Limit                     Soft Limit           Hard Limit           Units
Max cpu time              unlimited            unlimited            seconds
Max file size             unlimited            unlimited            bytes
Max data size             unlimited            unlimited            bytes
Max stack size            8388608              unlimited            bytes
Max core file size        unlimited            unlimited            bytes
Max resident set          unlimited            unlimited            bytes
Max processes             127372               127372               processes
Max open files            1024                 4096                 files
Max locked memory         16777216             16777216             bytes
Max address space         unlimited            unlimited            bytes
Max file locks            unlimited            unlimited            locks
Max pending signals       127372               127372               signals
Max msgqueue size         819200               819200               bytes
Max nice priority         0                    0
Max realtime priority     0                    0
Max realtime timeout      unlimited            unlimited            us

Basically, this confirms that I haven’t fine-tuned anything on this new desktop just yet – open files count of 1024 is small cause it’s not a server that requires serving multiple files simultaneously.

Hope you find this useful!
